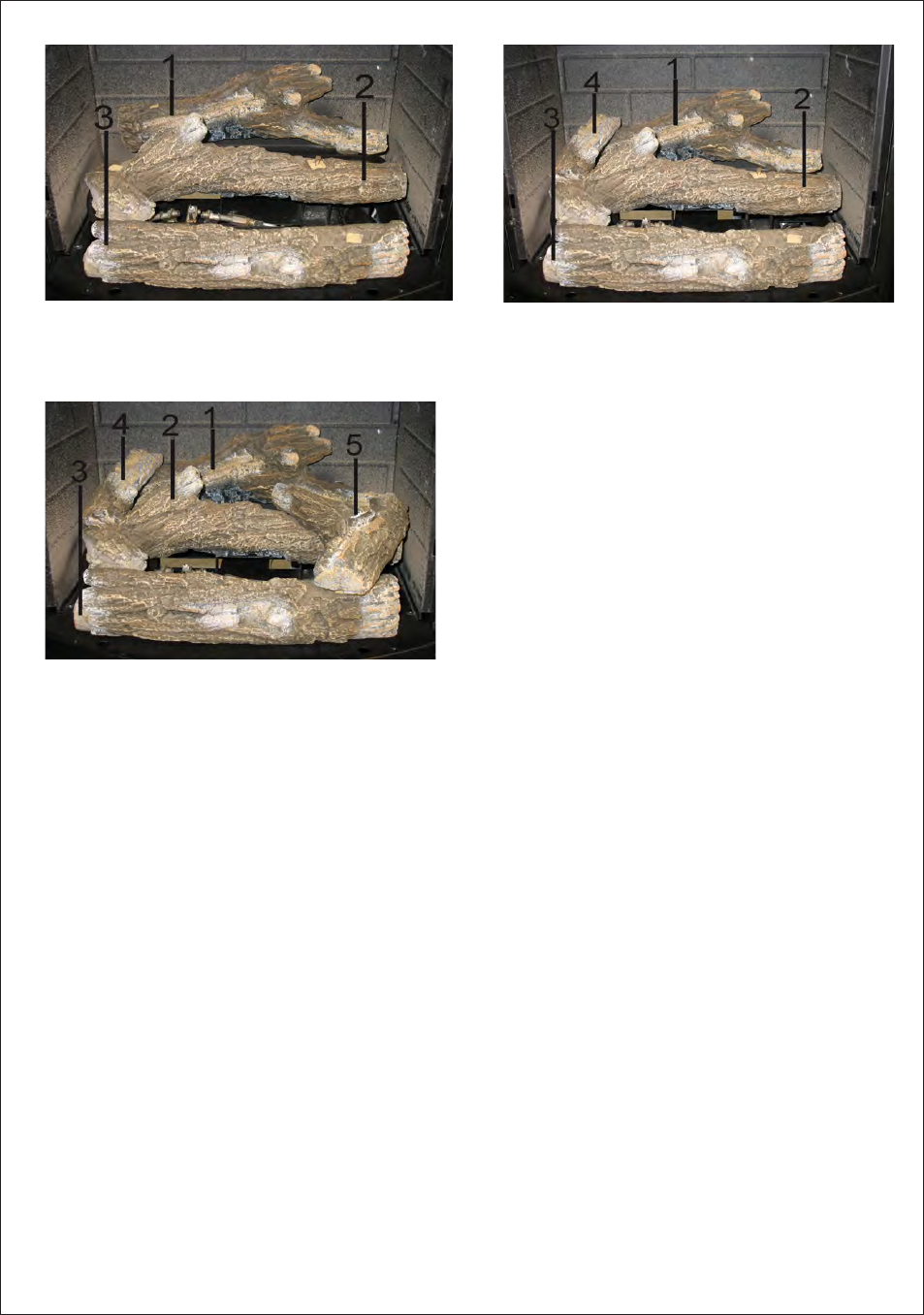

STEP 3: Insert the two pins on the bottom of log 3

into the two holes on firebox floor.

STEP 5:

Insert the recessed hole on the bottom of log 5

onto the pin on log 2, with the other end of log 5 placed

on log 3, as shown.

STEP 4: Insert the recessed hole on the bottom of log 4

onto the pin on log 1, with the other end of log 4 placed

on log 2, as shown.

15
